Freefly Astro remote operations: Blue UAS mapping crews, Auterion Suite and what LTE really does

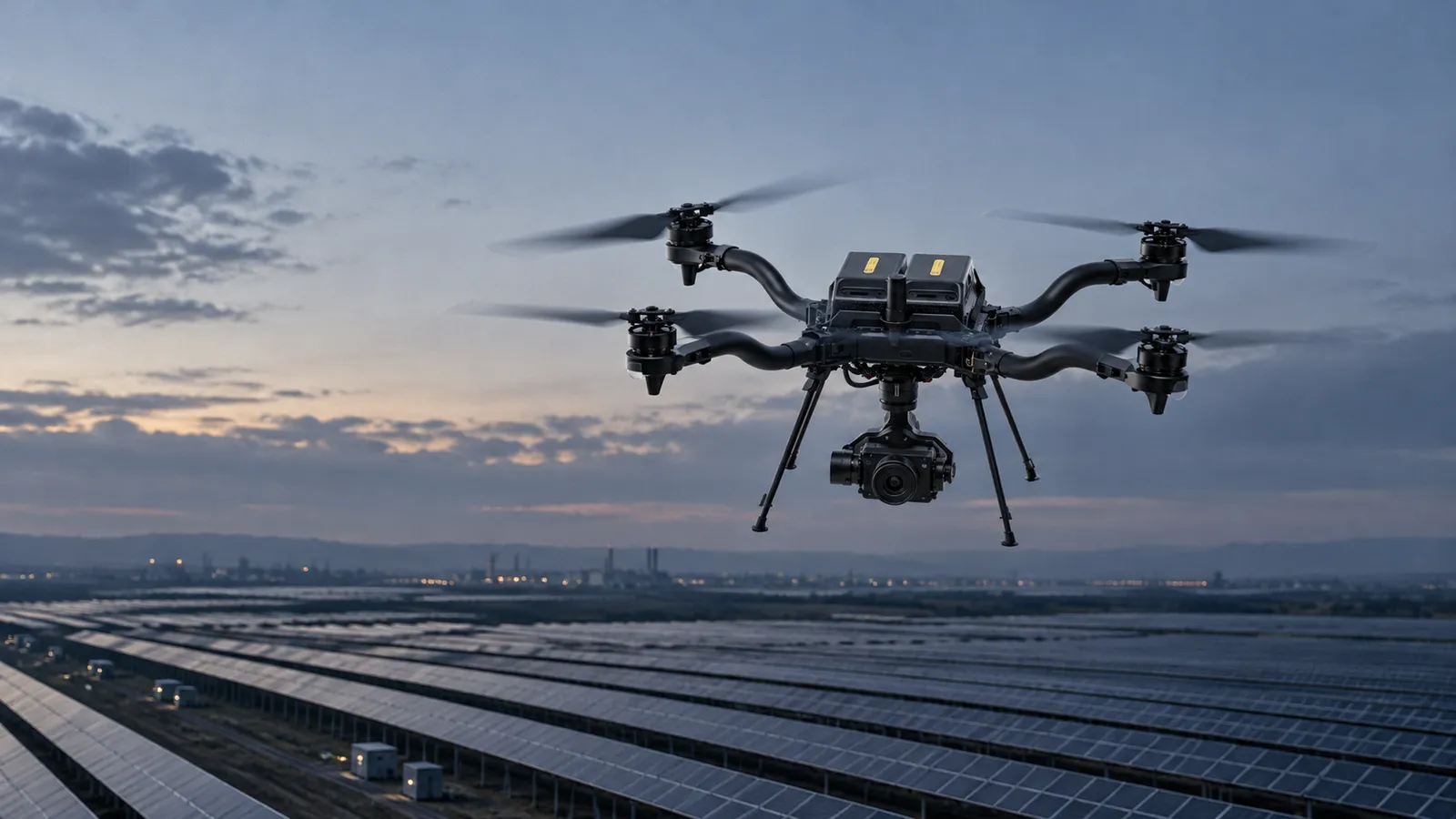

The Freefly Astro is one of the Blue UAS options for US government and utility mapping programs that cannot fly a DJI Matrice. It is built in Washington State, listed by Freefly as Blue UAS, runs an Auterion Enterprise build of PX4 on a Freefly Skynode, and carries LiDAR, full-frame mapping cameras and radiometric thermal on a standard payload interface. It is also a field aircraft. There is no dock, and Freefly's docs describe its LTE as a cloud link for uploads and streaming, not a way to fly it from a remote center. Running Astro remotely means being clear about which jobs can leave the site and which cannot.

Astro or Astro Max

Freefly's flight-time FAQ draws the line by payload: the Astro carries up to 1,500 g, the Astro Max up to 3,000 g. With SL8-Air batteries, both reach about 37 minutes with no payload; at 1,500 g the figure is 25 minutes, and at the Max's full 3,000 g it is 18 minutes. The Astro Max specs list an 8,700 g maximum takeoff weight, IP43, 22-inch folding props and a 930 mm unfolded frame without props. In practice the Max is the choice for heavier LiDAR or dual-sensor setups, and the standard Astro covers a Sony LR1 mapping camera or a single thermal payload with more time aloft.

How an Astro is actually flown

What LTE does on an Astro, and what it does not

This is the point most remote-ops plans get wrong. Freefly's network and connectivity page says a data SIM lets Astro join an LTE network for "some cloud features available in Auterion Suite", naming automatic flight upload and live video streaming. It does not describe controlling the aircraft over LTE. The LTE radio is currently for North America only (US and Canada), T-Mobile and Orange are the tested providers, and Blue/NDAA Astros ship with Wi-Fi and LTE disabled by default for Blue compliance.

Splitting the work: field pilot and remote team

For a survey or inspection program running several crews at once, the useful split looks like this:

Freefly also says it is initially focusing on a solo-operator setup for Astro, so plan on one pilot handling both flight and payload unless Freefly confirms otherwise. That makes the remote planner and reviewer more valuable, not less: the pilot has less spare attention for checking data in the field.

Failsafes a pilot and supervisor must both know

Astro's failsafes are documented in Freefly's emergency procedures, and they are short-fused by default:

Freefly recommends keeping default failsafe settings and changing only Return Altitude unless you have tested other changes. A remote team that plans the mission should set that Return Altitude per site, above the tallest obstacle on the return path.

Data from an Astro

Freefly's u-blox F9P GNSS supports an RTK base station for better accuracy. Agree before the first flight whether the deliverable is RTK, PPK or ground-control-based, and record which one each dataset used. That one field in the metadata saves a surveyor an hour of questions.

Field limits a good Astro pilot respects

Astro or a docked drone?

The two solve different problems. A docked system such as the Skydio Dock for X10 is built for repeat flights at one place with nobody on site, and its aircraft carries small attachments rather than survey payloads. The Astro is built to carry kilograms of sensor: a full-frame mapping camera, a survey LiDAR or a gas camera, flown by a crew that travels to the work. Corridor mapping, construction progress across many sites, and LiDAR for engineering deliverables fit the Astro. Daily perimeter checks, alarm response and fixed-site thermal rounds fit a dock. Programs that need both often keep the Astro for survey-grade work and use docks for frequent, lighter monitoring, with one remote team planning and checking the data for both.

Whichever mix you run, the remote reviewer's checklist for an Astro flight is short: was the planned grid flown in full, did GPS quality and vibration plots in the Suite log stay clean, did any failsafe trigger, and does the data cover the boundary with the agreed overlap. A flight that fails any of these gets re-flown while the crew is still nearby.

The allowed-fleet case for Astro

As of October 2026, Freefly lists Astro as Blue UAS and NDAA compliant, and says it is designed, assembled and supported in Woodinville, Washington. On the FCC side, Freefly's Covered List note says the December 2025 update does not affect existing Freefly products for US operators, its products are not on the Covered List, and there are no changes to the sale or support of existing or future equipment. For programs replacing a DJI mapping fleet, those are the facts procurement teams ask for first. BVLOS still runs on individual FAA approvals: Part 108 has been at OIRA since July 10, 2026 with no firm publication date, per PickDrones. None of this is legal advice.

How RoboPilots works with Astro programs

We train a dedicated group of Part 107 certified pilots and planners on your Astros, your payloads and your site standards, and the same group stays on your program. The remote side covers mission planning, airspace checks, live supervision where your setup allows it, and data QA. Your field crews fly the aircraft on site, and we work as the remote half of each crew.
